LaserTek

AIS Gauging presents a range of laser thickness measurement solutions tailored to your needs. Our offerings encompass both single and dual triangulation sensor configurations, each designed to provide precise thickness measurements. The single triangulation sensor option is recommended for most applications, utilizing a reference plate or stainless steel reference bar beneath the product.

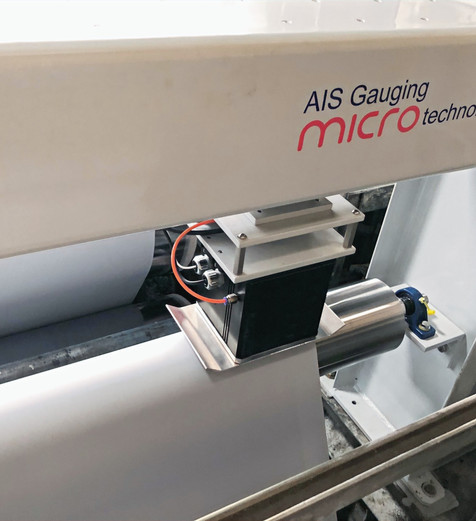

In the single-sided LaserTEK thickness gauge, a solitary laser operates in conjunction with an inductive radio frequency proximity sensor. The laser emits a coherent beam reflected off the product's surface, focused onto a CCD camera array detector. Simultaneously, the proximity sensor gauges the distance between the laser and a reference roll. Thickness is then derived by analyzing the difference between the laser's distance from the product's surface and the proximity sensor's distance to the roll surface.

For heightened accuracy, our dual laser sensors combine top and bottom triangulation measurements. Coherent laser beams from each source are reflected off the upper and lower surfaces of the product, their positions meticulously captured by CCD camera array detectors. A single inductive radio frequency proximity sensor tracks the distance between the top and bottom lasers. Product thickness is deduced by calculating the disparity between the sum of laser distances and the proximity sensor reading.

AIS Gauging's proprietary software conducts measurements and subsequent filtering/calculations, with results displayed on a user-friendly HMI interface. Our lasers incorporate automatic compensation for temperature and drift, ensuring precision remains unwavering throughout production. This non-nuclear, non-contact laser measurement solution outperforms traditional methods, offering enhanced safety and numerous advantages. Experience straightforward, high-precision measurement with our LaserTEK systems
